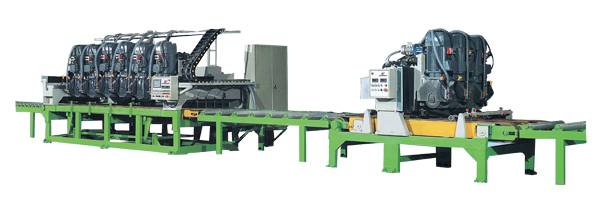

ZHQBJ-3000Efficient combination of automatic vertical and horizontal trimming machine

ZHQBJ-3000Efficient combination of automatic vertical and horizontal trimming machine

Features: Really stone cutting equipment with high efficiency, reasonable structure, reliable operation, high machining accuracy, high degree of automation, etc. Independent of the transverse beam and the main pay dynamic frequency conversion adjustment, can meet various requirements of cutting. Adopts advanced PLC intelligent control system, to realize automatic control. This production line is composed of five devices to total (into the machine, slitting machine, conveyor, cut machine, collecting machine) note: according to customer need to make the corresponding size.

Technical Data

appellation

ZXQBJ-1000

HXQBJ-3000

But the blade diameter

350-400mm

350-400mm

Cutting board rules

300-850mm width

300-2800mm width

Number of cutting head

3pcs

7pcs

The biggest cut size

10-60mm


10-60mm

Main motor power

15kw

15kw

Motor total power

55kw

120kw

workbench transmission speed

0-3000mm/min

0-7000mm/min

dimension of external form

3180x1550x1880mm

4680x2080x1880mm

Remark: the processing dimensions (length and width), overall dimension of equipment and motor power are subject to customers’demands.
