Single-beam Edge Cutting MachineHBQB-3000X

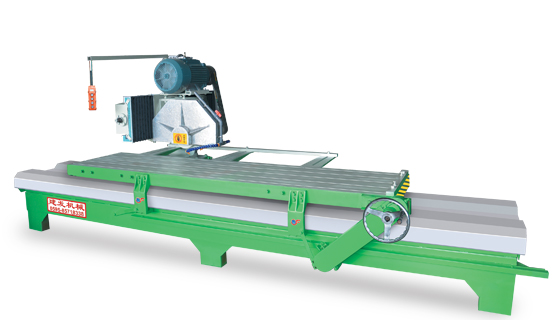

Single-beam Edge Cutting MachineHBQB-3000X

Purpose: for edge cutting and chamfering of stone slabs, making wave lines, sawing of strip stones and step stones, etc. Features: this machine has compact structure, with good rigidity and is easy to move. Both airproof & waterproof type and oil immersed type are durable, with high cutting accuracy. It can avoid quality problems like “raw edges”. The principal axis can be rotated at random and easy to operate.

Technical Data

appellation

HBQB-3000X

HBQB-3000

max.processing size

3000x1200x200mm

3000x1400x240mm

dimension of external form

5000x1850x1850mm

5000x2400x2100mm

maximum blade diameter

650mm

700mm

lifting motor

0.55kw

0.75kw

gross beam motor

0.55kw

0.55kw

axes motor

15kw

18.5kw

weight

≈2800kg

≈3150kg

Remark: the processing dimensions (length and width), overall dimension of equipment and motor power are subject to customers’demands.
