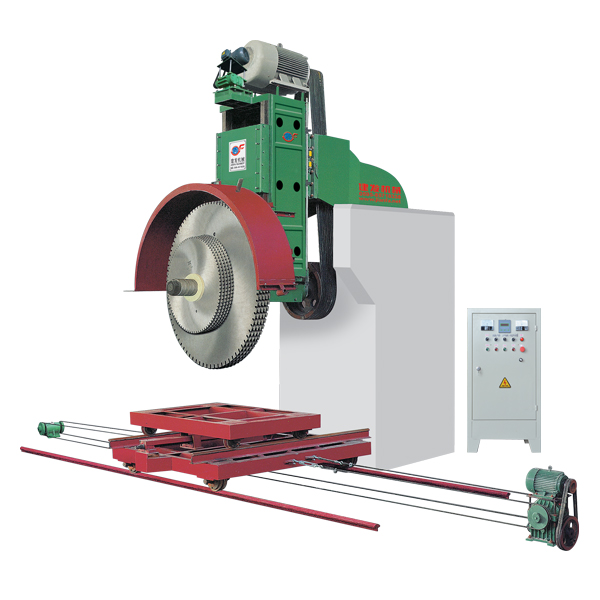

The single arm is made up and sawn DBQS-6P

Purpose: It is applicable for fragmentation and cutting of large & medium marbles, granites and rigid rough blocks. Features: The machine has high automation degree; actions like fragmentation, cutting and feeding are collectively controlled by the electric cabinet. The saw blade can have various combinations as required, with good stability, excellent processing precision, low consumption and high efficiency.

Technical Data

appellation	DBQS-3P	DBQS-6P	DBQS-10P
size of processing blocks	3500x1300x1100mm	3500x1300x1100mm	3500x1300x1100mm
blade vertical stroke	1200mm	1200mm	1200mm
blade diameter	1600-2500mm	1600-2500mm	1600-2500mm
main motor power	30kw	37kw	45kw
blade quantity	1-3pc	1-6pc	1-10pc
weight	≈6500kg	≈7500kg	≈8000kg

Remark: processing width size and equipment installation dimensions, motor power, can build the corresponding size according to customer needs, and can be customized hydraulic lifting system.
