Inregrated Bridge cutting machine LTQQ-600

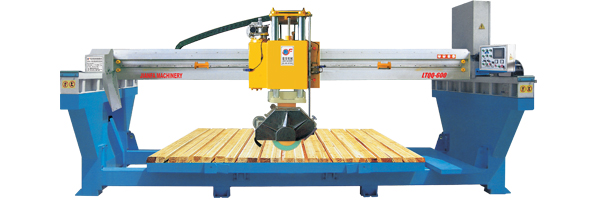

Inregrated Bridge cutting machine LTQQ-600

Purpose: Especialy suitable for high value big norms of granite and marble processing. Features: Controlled by microcomputers, the machine is generally positioned by fully automatic girder displacement, with easy operation and high cutting accuracy, and can make use of slabs to the utmost extent. Main elements of the machine (frequency converter, magnescale and laser level) are imported high-quality components and parts, which ensure the stable mechanical property, strong applicability and high reliability.

Technical Data

appellation

LTQQ-600

blade diameter

400-600mm

max cuting size

3200X2000X160mm

worktable dimensions

3200X2000mm

range of trolley

0/360n°

Worktable rotating degree

0-85n°

Head rotating degree

90n°

main motor power

18.5kw

water consumption

4m3/h

dimension of external form

5800X3500X2800mm

Remark: the processing dimensions (length and width), overall dimension of equipment and motor power are subject to customers’demands.
