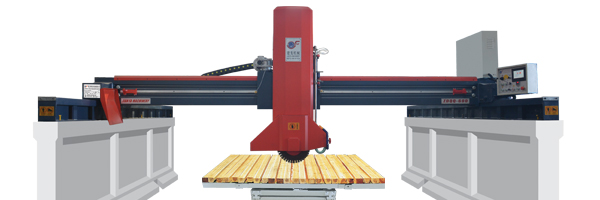

Infrared fully automatic bridge type edge cutting machine

Infrared fully automatic bridge type edge cutting machine

Features: The machine controlled by microcomputer, saw blades can be rotated in the three-dimensional surface of biggest 45 degrees, matching table can rotate 360 degrees in the horizontal, a positioning 45 degrees (can jump Angle positioning), 85 degrees of the flap. Precision manufacturing assembly and characteristic of the edge beam protection touch operating system, make it has high precision, high stability, high efficiency, easy operation, etc. Especially suitable for high value of large specifications granite, marble plate processing.

Technical Data

appellation
ZDQQ-600ZDQQ-800

worktable dimensions

3200x2000mm

3200x2000mm

dimension of external form

6000x5000x2800mm

6000x5000x2900mm

saw blade diameter

350-600mm

350-600mm

main motor power

1.5kw

18.5kw

after motor power

1.5kw

1.5kw

about motor power

1.5kw

1.5kw
Power of oil pump motor on rotary lifting turntable

2.2kw

2.2kw

range of trolley

0-90n°

0-90n°

cutting range front/rear

3200mm

3200mm

cutting range left/right

3500mm

3500mm

cutting range up/down

450mm

520mm

weigh

≈6500kg

≈6800kg

Remark: the processing dimensions (length and width), overall dimension of equipment and motor power are subject
