Bridge-styled hgdraulic blocks cutter YYQJ-2800

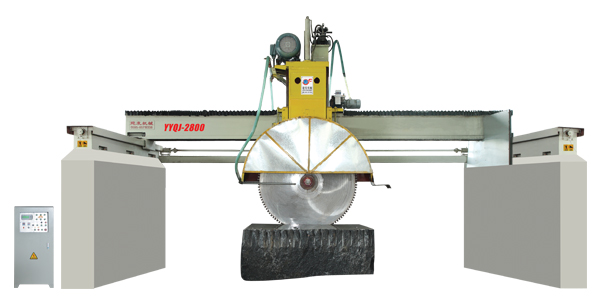

Bridge-styled hgdraulic blocks cutter YYQJ-2800

Purpose: It is applicable for cutting of stone blocks with large size as well as multidirectional cutting of art stones, doors & windows and stone stripes. Features: This is a novel machine developed on the basis of single arm and gantry cutting. Lifting of main engine is hydraulically controlled, with high automation degree and good stability. Stones can touch with ground directly, stable and not easy to shake. A few stones with different sizes can be put together at the same time to cut to expenses arising from the truck and others are spared.

Technical Data

appellation

YYQJ-2800

YYQJ-3200

size of processing blocks

3500x2800x1200mm

3500x2800x1300mm

dimension of external form

8000x3800x6500mm

8500x3800x6800mm

maximum blade diameter

2800mm

3000mm

main motor power

37kw

45kw

Host lift travel

1350mm

1450mm

weight

≈10000kg

≈13500kg

Remark: the processing dimensions (length and width), overall dimension of equipment and motor power are subject to customers’demands.
