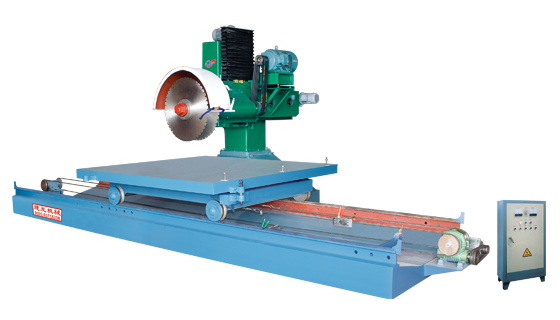

Cut the stone machine in cross arm type LTZQ-4500

Cut the stone machine in cross arm type LTZQ-4500

Purpose: It is applicable for cutting large, medium & small marbles, granites and rigid stone blocks. Features: The machine has single-pole single-column support as well as single-arm overhanging, with compact structure, convenient installation and small occupation area. It can be moved at any time as per the situation of the processing site. The main power can extend in fragmentation. The workbench can be rotated in 360°, with high accuracy and level & smooth processing surface. The automatic cutting can be realized throughout the process as per the preset parameters such as cutting depth, feeding speed and fragmentating thickness.

Technical Data

appellation

LTZQ-4500

size of processing blocks

4500x1800x480mm

dimension of external form

6950x2800x2600mm

blade diameter

1200mm

axes motor

18.5kw

lifting motor

2.2kw

gross beam motor

1.5kw

sawing machine motor

1.1kw

weight

≈5000kg

Remark: the processing dimensions (length and width), overall dimension of equipment and motor power are subject to customers’demands.
