主要技术参数/Technical Data

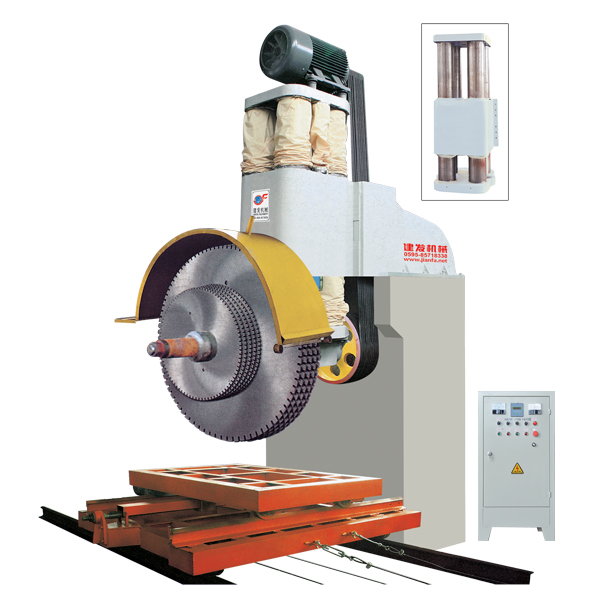

| 名称 | appellation | DBSZ-20P |
| 锯片数量 | blade quantity | 12-20pc |
| 锯片直径 | blade diameter | 1600-2200mm |
| 锯片升降行程 | blade vertical stroke | 1200mm |
| 最大切割尺寸 | max.processing size | 3500x1400x1000mm |
| 主电机功率 | main motor power | 55/75/90kw |
| 耗水量 | water consumption | 20/30/40m3/h |
| 总重量 | weight | ≈7500/8500/9500kg |
注：加工长宽尺寸和设备外型尺寸，电机功率，可根据客户需要制作对应尺寸。
Remark: the processing dimensions (length and width), overall dimension of equipment and motor power are subject to customers’demands.
