LTQQ-600连体式桥式切石机

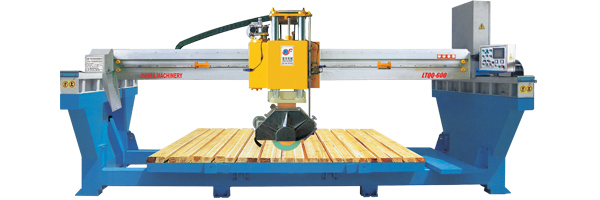

LTQQ-600连体式桥式切石机

用途:用于高价值大规格花岗岩、大理石板材的加工。 特点:该机在整体上采用全自动大梁位移定位,微电脑控制,操作简单,切割精度高,可最大限度的利用板材。整机主要元器件(变频器,磁力尺,镭射标线仪等)均采用进口优质零部件,从而保证机械性能稳定,适应性强,可靠性高。 Purpose: Especialy suitable for high value big norms of granite and marble processing. Features: Controlled by microcomputers, the machine is generally positioned by fully automatic girder displacement, with easy operation and high cutting accuracy, and can make use of slabs to the utmost extent. Main elements of the machine (frequency converter, magnescale and laser level) are imported high-quality components and parts, which ensure the stable mechanical property, strong applicability and high reliability. Inregrated Bridge cutting machine

主要技术参数/Technical Data
名称

appellation

LTQQ-600

锯片直径

blade diameter

400-600mm

最大切割尺寸

max cuting size

3200X2000X160mm

工作台尺寸

worktable dimensions

3200X2000mm

工作台旋转角度

range of trolley

0/360n°

工作台垂直翻板角度

Worktable rotating degree

0-85n°

机头旋转角度

Head rotating degree

90n°

主电机功率

main motor power

18.5kw

耗水量

water consumption

4m3/h

设备外形尺寸

dimension of external form

5800X3500X2800mm

注:加工长宽尺寸和设备外型尺寸,电机功率,可根据客户需要制作对应尺寸。

Remark: the processing dimensions (length and width), overall dimension of equipment and motor power are subject to customers’demands.
