LTZQ-4500十字臂连体中切机

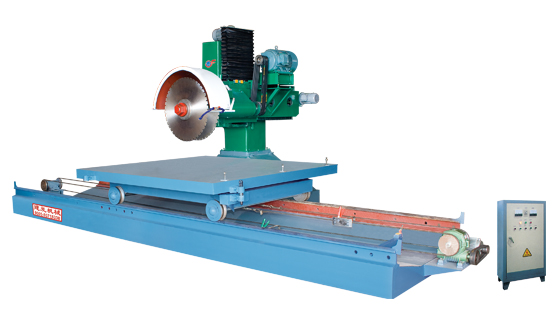

LTZQ-4500十字臂连体中切机

用途:用于大中小型大理石、花岗石及硬性石材荒料切割。 特点:该机采用立柱支撑单臂悬伸,结构紧凑,安装方便,占地面积少。能随时根据加工场地情况移动。主动力伸缩分片,工作台可360度旋转,精度高,加工面平整光滑。可按预先设置的切割深度,进给速度,分片厚度等参数实现全过程的自动切割。 Purpose: It is applicable for cutting large, medium & small marbles, granites and rigid stone blocks. Features: The machine has single-pole single-column support as well as single-arm overhanging, with compact structure, convenient installation and small occupation area. It can be moved at any time as per the situation of the processing site. The main power can extend in fragmentation. The workbench can be rotated in 360°, with high accuracy and level & smooth processing surface. The automatic cutting can be realized throughout the process as per the preset parameters such as cutting depth, feeding speed and fragmentating thickness. Cut the stone machine in cross arm type

主要技术参数/Technical Data
名称

appellation

LTZQ-4500
加工荒料尺寸

size of processing blocks

4500x1800x480mm
设备外形尺寸

dimension of external form

6950x2800x2600mm

锯片直径

blade diameter

1200mm

主轴电机

axes motor

18.5kw

升降电机

lifting motor

2.2kw

横臂电机

gross beam motor

1.5kw

台车电机

sawing machine motor

1.1kw

总重量

weight

≈5000kg

注:加工长宽尺寸和设备外型尺寸,电机功率,可根据客户需要制作对应尺寸。

Remark: the processing dimensions (length and width), overall dimension of equipment and motor power are subject to customers’demands.
