切边机 / Trimming machine

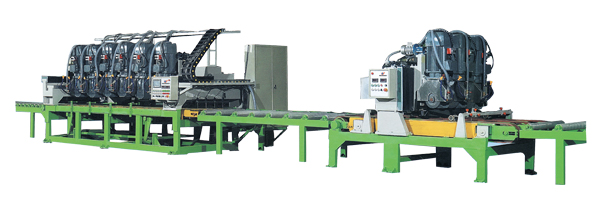

ZHQBJ-3000高效组合自动纵横切边机

ZHQBJ-3000高效组合自动纵横切边机

特点:高效率的石材切割设备,结构合理,运行可靠,加工精度高,自动化程度高等优点。独立的横向梁与主付动变频调整,可满足多种切割要求。采用先进的PLC智能控制系统,实现全自动控制。 本生产流水线共由5台设备来组成(进板机,纵切机,输送机,横切机,收板机)注:可根据客户需要制作对应的尺寸。 Features: Really stone cutting equipment with high efficiency, reasonable structure, reliable operation, high machining accuracy, high degree of automation, etc. Independent of the transverse beam and the main pay dynamic frequency conversion adjustment, can meet various requirements of cutting. Adopts advanced PLC intelligent control system, to realize automatic control. This production line is composed of five devices to total (into the machine, slitting machine, conveyor, cut machine, collecting machine) note: according to customer need to make the corresponding size.

主要技术参数/Technical Data
名称

appellation

ZXQBJ-1000

HXQBJ-3000

可装刀片直径

But the blade diameter

350-400mm

350-400mm

切板规则

Cutting board rules

300-850mm width

300-2800mm width

切割头数量

Number of cutting head

3pcs

7pcs

最大切割深度

The biggest cut size

10-60mm


10-60mm

主电机功率

Main motor power

15kw

15kw

电机总功率

Motor total power

55kw

120kw

工作台输送速度

workbench transmission speed

0-3000mm/min

0-7000mm/min

外形尺寸

dimension of external form

3180x1550x1880mm

4680x2080x1880mm

注:加工长宽尺寸和设备外型尺寸,电机功率,可根据客户需要制作对应尺寸。

Remark: the processing dimensions (length and width), overall dimension of equipment and motor power are subject to customers’demands.
