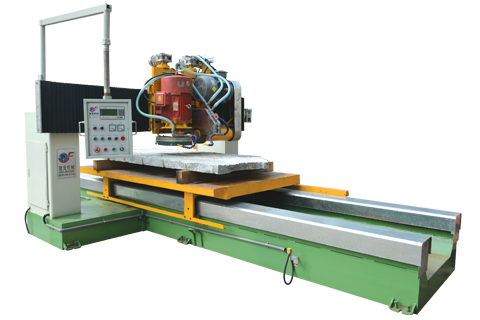

LMXMJ-1800PC龙门板底修面机

用途：用于大中小型大理石、花岗石板底及进口石材定厚、修平、切割。特点：该机采用丝杆全自动切片升降双刀切面机，整体钢性好、间隙小，有效降低切割生产过程中晃动，生产效率高，降低能耗，刀头损耗小，板材平整度好。 Purpose: For small and medium-sized marble, granite slab bottom and imported stone thick, smooth, cutting Features:This machine adopts the screw automatic slice lifting double knife cutting machine，the overall good rigidity,small gap,effectively reduce the cutting process,high production efficiency,reducing energy consumption,small head loss,good flatness

主要技术参数/Technical Data

名称	appellation	LMXMJ-1800PC
最大加工尺寸	Max processing size	3100x1800x240mm
设备外形尺寸	dimension of external form	7000x2800x2180mm
主锯片最大直径	The maximum diameter of main saw blade	500mm
分锯片最大直径	Saw blade diameter divided	400mm
主切电机功率	The main cutting motor power	15-18.5kw
分切电机功率	The cutting motor power	11-15kw
主切升降电机功率	Power cut main lifting motor	0.55kw
分切升降电机功率	The cutting lifting motor power	0.55kw
分切电机功率	Slice motor power	1.5kw
台车电机功率	Trolley motor power	1.5kw
总重量	weight	≈4500kg

注：加工长宽尺寸和设备外型尺寸，电机功率，可根据客户需要制作对应尺寸。

Remark: the processing dimensions (length and width), overall dimension of equipment and motor power are subject to customers’demands.
