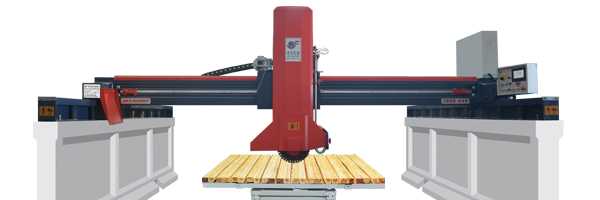

红外线自动桥式切石机ZDQQ-600

特点：该机采用微电脑控制，锯片最大可在立体面内旋转45度，与其相配的工作台可在水平内360度旋转，45度一个定位（可跳跃式角度定位），85度翻板。精密的制造组装以及特有的边梁保护装置触摸式操作系统，使其具有高精度、高稳定性、高效率、操作简便等优点。特别适用于高价值大规格花岗岩、大理石板材的加工。 Features: The machine controlled by microcomputer, saw blades can be rotated in the three-dimensional surface of biggest 45 degrees, matching table can rotate 360 degrees in the horizontal, a positioning 45 degrees (can jump Angle positioning), 85 degrees of the flap. Precision manufacturing assembly and characteristic of the edge beam protection touch operating system, make it has high precision, high stability, high efficiency, easy operation, etc. Especially suitable for high value of large specifications granite, marble plate processing.

主要技术参数/Technical Data

名称	appellation	ZDQQ-600	ZDQQ-800
工作台尺寸	worktable dimensions	3200x2000mm	3200x2000mm
设备外形尺寸	dimension of external form	6000x5000x2800mm	6000x5000x2900mm
锯片直径	saw blade diameter	350-600mm	350-600mm
主电机功率	main motor power	1.5kw	18.5kw
前后电机功率	after motor power	1.5kw	1.5kw
左右电机功率	about motor power	1.5kw	1.5kw
翻转，升降，转台油泵电机功率	Power of oil pump motor on rotary lifting turntable	2.2kw	2.2kw
台面转角	range of trolley	0-90n°	0-90n°
切割行程（前后）	cutting range front/rear	3200mm	3200mm
切割行程（左右）	cutting range left/right	3500mm	3500mm
切割行程（上下）	cutting range up/down	450mm	520mm
总重量	weigh	≈6500kg	≈6800kg

注：加工长宽尺寸和设备外型尺寸，电机功率，可根据客户需要制作对应尺寸。

Remark: the processing dimensions (length and width), overall dimension of equipment and motor power are subject to customers’demands.
