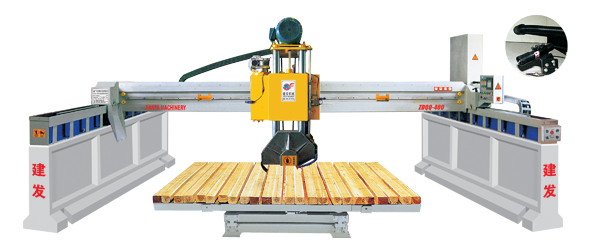

红外线导柱桥式切石机ZDQQ-400

红外线导柱桥式切石机ZDQQ-400

用途:用于高价值大规格花岗岩、大理石板材的加工。 特点:该机采用微电脑控制,与其相配的工作台可在小平面内360°旋转,45°一个定位(可跳跃式角度定位),85°翻板。精密的制造组装以及特有的边梁保护装置,触摸式操作系统,使其具有高精度、高稳定性、高效率、操作简便等特点。 Purpose: Especialy suitable for high value big norms of granite and marble processing. Features: The machine uses the microcomputer control,and within the workbench but match in the plane of the 360° rotation,45° a positioning(But prancing angle positioning),85° recumbent flap. precision mnufacturing assembly and unique side beams protection device, feeling type operating system,make it has high precision, high stability, high efficiency of, simple operation,etc.

主要技术参数/Technical Data

名称

appellation

ZDQQ-400

ZDQQ-700

工作台尺寸

worktable dimensions

3200x2000mm

3200x2000mm

设备外形尺寸

dimension of external form

6000x5000x2800mm

6000x5000x2800mm

锯片直径

saw blade diameter

350-400mm

350-700mm

主电机功率

main motor power

15kw

18.5kw

前后电机功率

after motor power

1.5kw

1.5kw

左右电机功率

about motor power

1.5kw

1.5kw

翻转,升降,转台油泵电机功率Power of oil pump motor on rotary lifting turntable

2.2kw

2.2kw

台面转角

range of trolley

0-360n°

0-360n°

切割行程(前后)

cutting range front/rear

3200mm

3200mm
切割行程(左右)

cutting range left/right

3500mm

3500mm

切割行程(上下)

cutting range up/down

200mm

450mm

总重量

weight

≈6300kg

≈6500kg

注:加工长宽尺寸和设备外型尺寸,电机功率,可根据客户需要制作对应尺寸。

Remark: the processing dimensions (length and width), overall dimension of equipment and motor power are subject to customers’demands.
