桥式液压大切机YYQJ-2800

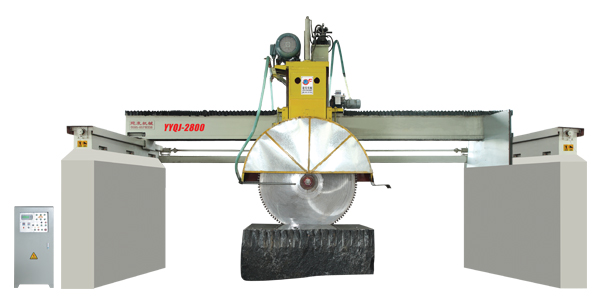

桥式液压大切机YYQJ-2800

用途:适用于切超大规格的荒料,又可用于工艺及门窗、条石多方位切割。 特点: 该机是在单臂与龙门大切的基础上开发研制的新机种。主机升降由液压控制,自动化程度高,稳定性好。石料可直接与地面接触,平稳、不易晃动。同时可排放多块不同尺寸的石料进行切割,并免去了台车部份以及其它的损耗费用。 Purpose: It is applicable for cutting of stone blocks with large size as well as multidirectional cutting of art stones, doors & windows and stone stripes. Features: This is a novel machine developed on the basis of single arm and gantry cutting. Lifting of main engine is hydraulically controlled, with high automation degree and good stability. Stones can touch with ground directly, stable and not easy to shake. A few stones with different sizes can be put together at the same time to cut to expenses arising from the truck and others are spared.

主要技术参数/Technical Data
名称

appellation

YYQJ-2800

YYQJ-3200

加工荒料尺寸

size of processing blocks

3500x2800x1200mm

3500x2800x1300mm

设备外形尺寸

dimension of external form

8000x3800x6500mm

8500x3800x6800mm

锯片最大直径

maximum blade diameter

2800mm

3000mm

主电机功率

main motor power

37kw

45kw

主机升降行程

Host lift travel

1350mm

1450mm

总重量

weight

≈10000kg

≈13500kg

注:加工长宽尺寸和设备外型尺寸,电机功率,可根据客户需要制作对应尺寸。

Remark: the processing dimensions (length and width), overall dimension of equipment and motor power are subject to customers’demands.
