清洗机 / 清洗机

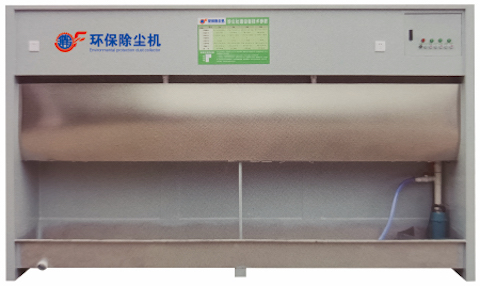

环保除尘机

环保除尘机

用途:本产品广泛适用于石材厂、卫消厂、陶瓷厂、水泥厂、化工厂、木材加工厂、喷漆房等生产车间。 特点:新款水帘式除全设备,使用方便;打磨、切制,、铣边等生产中的粉尘被吸入设备内进行净化排放,设备采用PVC过滤材料经特殊工艺精制而成型,使用过程中水不堵塞,水箱采用不锈钢材料制作,吸尘区域采用敞开式无门设计,使得吸尘效规大大增加,采用优质离心式风机,有效降低噪音。 Purpose: This product is widely used in stone factory, Weixiao factory, ceramic factory, cement factory, chemical factory, wood processing factory, spray booth and other production workshops. Features: The new type of water curtain is convenient to use; The dust in grinding, cutting, milling and other production is inhaled into the equipment for purification and discharge. The equipment is made of PVC filter material and refined by special process. The water is not blocked in the process of use. The water tank is made of stainless steel. The open door design is adopted in the dust collection area, which greatly increases the dust collection efficiency. The high-quality centrifugal fan is used to effectively reduce the noise.

主要技术参数/Technical Data

产品型号ZL-HC3000ZL-HC4000ZL-HC5000
风机功率2.2kw2.2kw2.2kw
风机数量2台3台4台
总进风量11200m³/h16800m³/h22400m³/h
设备吸力3.5-4.2m/s3.5-4.2m/s3.5-4.2m/s
噪音值70-78dB70-78dB70-78dB
水泵功率1.1kw1.1kw1.5kw
总功率5.5kw7.7kw10.3kw
外形尺寸3000x2660x860mm4000x2660x860mm5000x2660x860mm
总重量650kg930kg1180kg

注:加工长宽尺寸和设备外型尺寸,电机功率,可根据客户需要制作对应尺寸
Remark:the processing dimensions(length and width),overall dimension of equipment and motor power are subject to customers'demands
